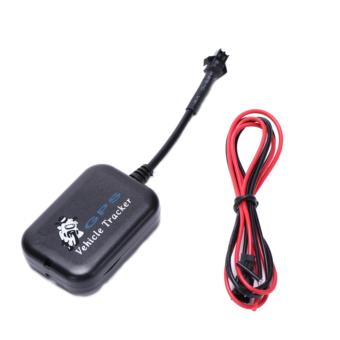

TX-5 Xe Ô Tô Xe Máy xe GPS GSM Theo Dõi Thiết Bị Định Vị Hệ Thống Thời Gian Thực Theo Dõi-quốc tế + Follow
THÔNG TIN CHI TIẾT
- Chỉ SIM GSM thẻ tác phẩm trong mô hình này
- Xin hãy chắc chắn GSM thẻ SIM hỗ trợ thực hiện cuộc gọi, gửi tin nhắn, GPRS mạng.
- Xin hãy chắc chắn SIM GSM thẻ với đủ cân bằng
- Xin hãy chắc chắn GSM thẻ có mở gọi chương trình và tắt chuyển cuộc gọi.
- Xin lắp GSM thẻ điện thoại một cách chính xác.
- Tần số GSM: Sử Dụng trên toàn cầu
Notice:
1.Only GSM SIM card works in this model
2.Please make sure GSM SIM card supports making calls, sending messages, GPRS network.
3.Please make sure GSM SIM card is with sufficient balance
4.Please make sure the GSM card has opened the call shows and turned off the call transfer.
5.Please insert the GSM phone card correctly.
Features:
GSM frequency: Used globally
Real-time location tracking, track playback.
Support for SMS and GPRS platform tracking.
For micro letter management platform, free control.
Mobile client support for android, apple system remote control.
Query function machine wap mode.
Built-in vibration sensor, the realization of vehicle vibration alarm.
Specifications:
Type: GPS Tracker(Battery is not included)
GSM Frequency: GSM 850/1900 900/1800MHz
Color: Black
Material: PVC
Voltage Range：12-28V DC
Standby Current: ≈0.2mAh
Working Temperature: -30℃ ~ 85℃
Working Humidity: 5%-95% non-condensing
Storage Temperature: -40℃ ~ 85℃
Wide input voltage range: DC 9-38V
GSM Accuracy: GSM Accuracy<= 50m(60%) It will depend on the local base station number and density
Positioning Time: Cold Boot<= 38S
Hot Boot<= 10S
Size(L x W x H): 55mm x 38mm x 13mm (Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
In order to keep it from theft’s damage, hidden place installation suggested.
Please avoid to install along with or near transmitter, ie: Reversing radar, other anti-theft vehicle terminals.
Use ribbons to fasten the terminal, or strong double-faced adhesive tape.
The GSM and GPS antennas’signal receiving side shall face the sky, and no shield materials to block the signal, ie: metal. Also it shall avoid to interfere signals, 2 antennas separate installation suggested.
Any metal heat shield layer or heating layer will reduce the signal of GPS, it may cause GPS function failure, please adjust the installation place.
Installation place suggested:
a)Within front decorated board under windshield.
b)Under Dashboard (avoid metal cover).
c)Within back decorated board under windshield.
Package Content:
1 x GPS Tracker
1 x Power Cord
1 x User Manual
No Retail Packing
- Brand OEM
- SKU OE680SPAABQV9OVNAMZ-23778219
- Model TX-5 Car Motorcycle vehicle GPS GSM Tracker Locator System Real Time Tracking
- Warranty Type No Warranty
What’s in the box
- 1 x GPS Tracker
- 1 x Power Cord
- 1 x User Manual(No Retail Packing)
